EHS-A
EBP INSTRUMENTS
Shanghai, Shenzhen
90 sets per month
TT in advance
1 set
Overview:

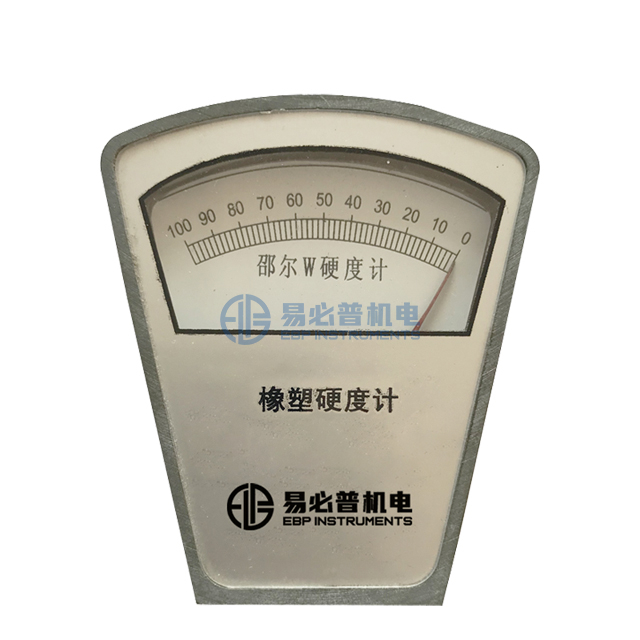

Shore Durometer, especially designed for testing the hardness of vulcanized rubber and plastic products, has simple structure, easy operation and reading. High resolution, easy to use, portable. It complies with the international standards ASTM D2240, GB/T531, GB/T6031 Standard Test Method for Rubber Property-Durometer Hardness.
Features:
1. Equipped with test frame, it can install the gauge to the frame. Test the hardness to the rubber and plastic standard strip in the lab
2. The gauge is independent, user can hold the gauge to test the apparent containing rubber or plastic
3. Pressure needle range: 0-2.5mm
Model & Application:
Model | Application & Test range | Sample Thickness (mm) |
EHS-W | Mainly detect the hardness of soft rubber, rubber and plastic. Effective test range: 20-85 degrees. When using type A to test the hardness below 20 degrees, use this W hardness tester to test (Shore C). | ≥6 Can be stacked in two layers |
EHS-A | Mainly detect the hardness of rubber, rubber and plastic with conventional hardness. Effective test range: 20-85 degrees. | ≥4 Can be stacked in two layers |
EHS-D | Mainly detect the hardness of hard rubber and plastic. Effective test range: 20-85 degrees. When using type A to test the hardness above 80 degrees, type D hardness tester should be used. | ≥4 Can be stacked in two layers |
Overview:
Shore Durometer, especially designed for testing the hardness of vulcanized rubber and plastic products, has simple structure, easy operation and reading. High resolution, easy to use, portable. It complies with the international standards ASTM D2240, GB/T531, GB/T6031 Standard Test Method for Rubber Property-Durometer Hardness.
Features:
1. Equipped with test frame, it can install the gauge to the frame. Test the hardness to the rubber and plastic standard strip in the lab
2. The gauge is independent, user can hold the gauge to test the apparent containing rubber or plastic
3. Pressure needle range: 0-2.5mm
Model & Application:
Model | Application & Test range | Sample Thickness (mm) |
EHS-W | Mainly detect the hardness of soft rubber, rubber and plastic. Effective test range: 20-85 degrees. When using type A to test the hardness below 20 degrees, use this W hardness tester to test (Shore C). | ≥6 Can be stacked in two layers |
EHS-A | Mainly detect the hardness of rubber, rubber and plastic with conventional hardness. Effective test range: 20-85 degrees. | ≥4 Can be stacked in two layers |
EHS-D | Mainly detect the hardness of hard rubber and plastic. Effective test range: 20-85 degrees. When using type A to test the hardness above 80 degrees, type D hardness tester should be used. | ≥4 Can be stacked in two layers |
