R-150AT
EBP INSTRUMENTS
Shanghai / Shenzhen / Ningbo
90 sets per month
TT in advance
1 set
Product Features:
1. Automatic testing process, put the sample on testing table, then press the "Start" button and the machine will be working automatically raise working table and start test process (loading – dwell – unloading).
2. Automatic measurement of hardness, hardness values displayed on screen automatically.
3. Touch screen interface, easy operation, English language
4. Load cell / closed loop, no need install dead weights, electric loading.
5. Automatic correction of high, medium and low hardness numbers.
6. Automatic correction of load, with the force accuracy increased by a numerical level
7. Support set a password to protect setted parameter can not modify without password.
8. Data stored in USB flash disk, EXCEL format, easy for compiling and processing
9. Modular design, easy maintenance
Larger testing space 300x200mm.
Main application：
1.Quality control of Industrial production (machinery manufacturing, metallurgy plants, etc.)
2.Research & Inspection of Inspection Institution and universities laboratories.
3.Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating. Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness.
Technical parameters：
Model | R-150AT |
Rockwell scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV |
Conversion scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
Test force (error < 0.5%) | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N); Initial force: 10kgf (98N) |
Dwell time | 0-99s |
Hardness testing range | HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77 HRE:70-100 HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100 HRL:100-120 HRM:85-115 HRR:114-125 |
Resolution | 0.1HR |
Executive standard | BSEN 6508, ISO 6508, ASTM E18, GB/T230, JJG112 verification regulation |
Testing space | Height: 300mm; Depth: 200mm |
Hardness reading | LCD display |
Data output | USB flash disk |
Power supply | AC220±5%, 50-60Hz |
Net weight | 80kg |
Standard Accessory:
Name | Quantity | Name | Quantity |
Diamond Rockwell indenter | 1 | Ball indenter with the diameter of 1.5875 mm | 1 |
Hardness block(HRB, HRC high, HRC low) | 3 | Large, medium, V-type testing table | 1 for each |
USB flash disk, touch screen pen | 1 for each | Manual book | 1 |
Power line | 1 |

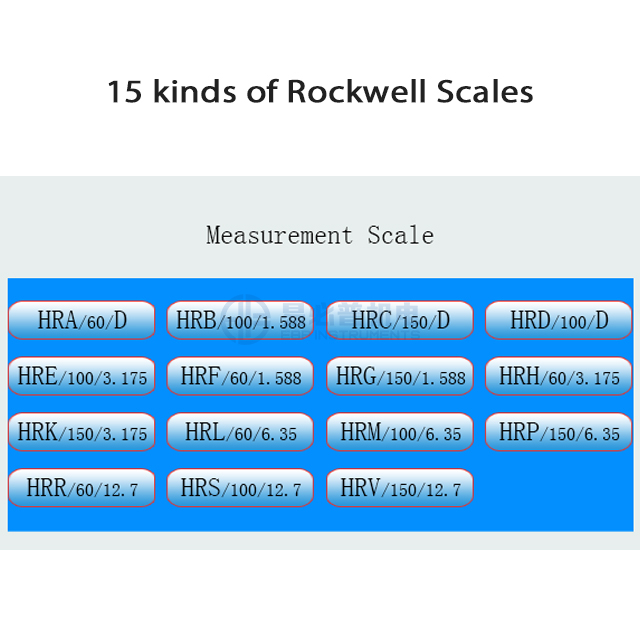

The scales, indenters, test forces of the Rockwell hardness test and examples of application.
Scale | Indenter | Initial Test Force（N） | Total Test Force （N） | Examples of Applications |
HRA | Diamond Indenter | 98.07（10kg） | 588.4(60kg) | Hard metal and hard alloy |
HRD | 980.7(100kg) | Steel sheet, surface-quenched steel | ||
HRC | 1471(150kg) | Heat treated structural steel, tool steel | ||
HRF | Ball Indenter φ1.5875mm （1/16 inch） | 588.4(60kg) | Non-ferrous metals | |
HRB | 980.7(100kg) | Non-ferrous metals; soft metals | ||
HRG | 1471(150kg) | Pearlite iron, copper, nickel, zinc alloy | ||
HRH | Ball Indenter φ3.175mm （1/8 inch） | 588.4(60kg) | Annealed copper alloy | |
HRK | 1471(150kg) | Non-ferrous metals, hard plastics | ||
HRE | 980.7(100kg) | Aluminum and aluminum alloy | ||
HRL | Ball Indenter φ6.35mm （1/4 inch） | 588.4(60kg) | ||
HRM | 980.7(100kg) | |||
HRP | 1471(150kg) | |||
HRR | Ball Indenter φ12.7mm （1/2 inch） | 588.4(60kg) | ||
HRS | 980.7(100kg) | |||
HRV | 1471(150kg) |
