eRSR-150T
EBP INSTRUMENTS
Shanghai / Shenzhen / Ningbo
150 sets per month
TT in advance
1 set
eRSR-150T digital touch screen twin Rockwell hardness tester has high level automation, stable and reliable performance, it is equipped with sophisticated sensors so that can test data more accurate ; Large touch screen provide comprehensive data for quality control.
Features:
1. The color touch screen will display hardness value, conversion value, test force, dwell time, indenter info. etc directly, indicator responses sensitively, show the hardness value accurately, the test value is more accurate than national standard;
2. Automatic loading - dwell - unloading test force, easy operate
3. Support English & Chinese language, menu structure
4. Built-in printer can print test result directly
5. One-time casted molding shell, stable structure and it is not easy to be out of shape. It can work under harsh environment; the shell coating adopted car paint technology with white color. it has strong scratch resistance capability and still look bright as new after use many years;
6. The screw rod adopts the fine grinding process, which ensures that the machine can be lifted smoothly and without eccentricity, make test accuracy more higher and stable.
Application Fields:
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. Also suitable for surface quenched steel, surface heat treating and chemical treating materials, sheet, zinc layers, chrome layers, tin layers etc.
Technical parameters：
Model | eRSR-150T | |

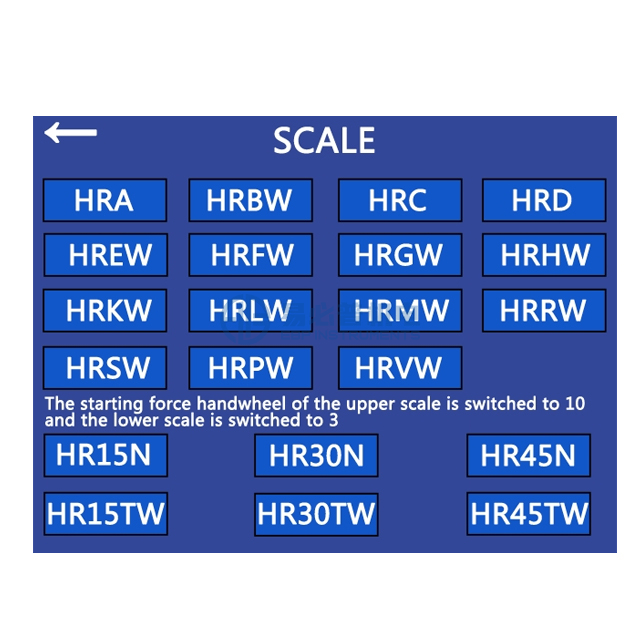

Rockwell scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | |
Conversion scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, H15N, H30N, H45N, H15T, H30T, H45T | |
Preliminary test force | 3kgf (29.4N) for superficial Rockwell 10kgf (98N) for Rockwell | |
Total test force | 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N) 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N) | |
Indication Resolution | 0.1HR | |
Hardness value range | HRA: 20-96, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:50-115, HRM:50-115, HRR:50-115 HR15N:70-94, HR30N:42-86, HR45N:20-77, HR15T:67-93, HR30T:29-82, HR45T:10-72 | |
Hardness data read | Color touch screen | |
Loading method | Automatic (Load, Dwell, Unload) | |
Dwell time | 1-99S, each step 1 second | |
Data output | Built-in printer, RS232 port | |
Test space | Maximum height: 200mm; Maximum throat depth:160mm | |
Machine Size / N.W | 520X240x720mm (L×W×H); 85kg | |
Package Size / G.W | 600*365*900mm; 100kg | |
Executive standard | GB/T230.2 , BSEN 6508, ASTM E18 , ISO 6508 , JJG112 | |
Standard Accessory:
Name | Q’ty | Name | Q’ty |
Diamond indenter | 1 | 1.5875mm diameter hard alloy steel ball indenter | 1 |
Standard hardness block | 6 | Large testing table | 1 |
Medium testing table | 1 | V-shaped testing table | 1 |
Dust-proof cover: | 1 | Accessory case | 1 |
Manual Book | 1 | Certificate | 1 |
Hardness scale, force, Indenter relation of Rockwell scales:
Scale | Indenter | Preliminary test force (N) | Total test force (N) | Applications |
A | Diamond indenter coning angle 120°0.2mm radius of top sphere |
98 | 588 | Horniness alloy, cementite steel |
D | 980 | Thin steel, quenched case | ||
C | 1471 | Quenched steel, thermal refined steel, cast steel | ||
F | Diameter of steel ball 1.588mm (1/16 inch) | 588 | Anneal copper alloy, thin soft steel | |
B | 980 | Soft steel, aluminum alloy, copper alloy, casting | ||
G | 1471 | Pearliest iron, copper, nickel, zinc, nickel alloy | ||
H | Diameter of steel ball 3.175mm (1/8 inch) | 588 | annealed copper alloy | |
E | 980 | Aluminum and aluminum alloy | ||
K | 1471 | Non-ferrous metals, hard plastics | ||
L | Ball Indenter φ6.35mm (1/4 inch) | 588.4 | Hard plastics, hard rubbers, aluminum, tin, copper, mild steel, synthetic resin and friction materials. | |
M | 980.7 | |||
P | 1471 | |||
R | Ball Indenter φ12.7mm (1/2 inch) | 588.4 | ||
S | 980.7 | |||
V | 1471 |
Hardness scale, force, Indenter relation of Superficial Rockwell scales:
Scale | Indenter | Preliminary test force (N) | Total test force (N) | Applications |
15N | Diamond Indenter | 29.42 N （3kg） | 147.1(15) | Hard alloy steel, nitride steel, carburized steel, various heavy steel plate, etc |
30N | 294.2(30) | Surface-quenched steel, carburized steel, knife, thin steel plate, etc | ||
45N | 441.3(45) | Quenched steel, tempered steel, hard cast iron and edge of parts, etc | ||
15T | Ball Indenter φ1.5875mm (1/16 inch) | 147.1(15) | Annealed copper alloy, mild steel sheet, brass、bronze plate, etc | |
30T | 294.2(30) | Mild steel sheet, aluminum alloy, copper alloy, brass and bronze, malleable cast iron | ||
45T | 441.3(45) | Pearlite iron, copper -nickel alloy and zinc-nickel alloy plate, etc |
