eVIck-10ZT
EBP INSTRUMENTS
Shanghai, Shenzhen
100 sets
TT in advance
1 set
Specification:
Model | eVIck-5/10/30/50ZT | eVIck-5/10/30/50T | |
Turret | Automatic | Manual | |
Hardness Scale & Test Force | eVIck-5ZT eVIck-5T | HV0.3, HV0.5, HV1, HV2, HV3, HV5 | |
0.3kg(2.94N), 0.5kg(4.9N), 1kg(9.8N), 2kg(19.6N), 3kg(29.4N), 5kg (49N) | |||
eVIck-10ZT eVIck-10T | HV0.3, HV0.5, HV1, HV3, HV5, HV10 | ||
0.3kg(2.94N), 0.5kg (4.9N), 1kg (9.8N), 3kg (29.4N), 5kg (49N), 10kg (98N) | |||
eVIck-30ZT eVIck-30T | HV1, HV3, HV5, HV10, HV20, HV30 | ||
1kg(9.8N),3kg(29.4N),5kg(49N),10kg(98N),20kg(196N), 30kg(294N) | |||
eVIck-50ZT eVIck-50T | HV1, HV5, HV10, HV20, HV30, HV50 | ||
1kg(9.8N), 5kg(49N), 10kg(98N), 20kg(196N), 30kg(294N), 50kg(490N) | |||
Hardness conversion scale | HRA, HRB, HRC, HRD, HK, HBS, H15N, H30N, H45N, H15T, H30T, H45T | ||
Loading speed | ≤50μm/sec | ||
Min. Measuring Unit of eyepiece reading drum | 0.5μm | ||
Indenter | Standard Rectangular pyramid diamond indenter (136º±0.5º) | ||
Hardness Value Range | 5-3000HV, 8-4500HK | ||
Data Display | Touch screen | ||
Total Magnification | 100X (For Observation), 200X (For Measurement) | ||
Loading Method | Automatically (Load, dwell and unload) | ||
Dwell Time | 1-99s (each step is 1 second) | ||
Maximum Height | 175mm | ||
Throat depth | 135mm | ||
Light Source | LED Cold light source | ||
Power Supply | 220V + 5%, 50/60 Hz (110V is available) | ||
X-Y Testing Table (optional purchase) | Dim.: 100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm | ||
Instrument size and Net weight | 600*220*700mm; 55kg | ||
Executed Standard | GB/T4340, ASTM E384 & E92, EN-ISO 6507-2, JIS B-7734 | ||
Standard Accessories | 1 piece: 10X analog eyepiece ; 10X and 20X objective lens; Vickers indenter; Level bubble; Large / Medium / V-shape Testing Table; Power line; Dust proof cover; Manual Book; Hardness Conversion Tables; Quality certificate; Warranty Card; Accessory case 2 pieces: Standard block of hardness 4 pieces: horizontal adjusting screw | ||
Optional Purchase Accessories | Image analysis software; Metallographic equipment; Knoop Indenter; hardness block; 15X micrometer eyepiece | ||
Main Features:
1. The optical system designed by our senior optical engineer not only meet the definition of hardness testing requirements, but also can observe the micro structure of the material, image is very clear.
2. According to different visual habits of the operators, the strength of the light source can be adjusted. To avoid the visual fatigue for long time operation.
3. With Vickers hardness and Knoop hardness testing capabilities. By measuring the indentation diagonal length, the hardness value will show on the screen directly, no need to check hardness table.

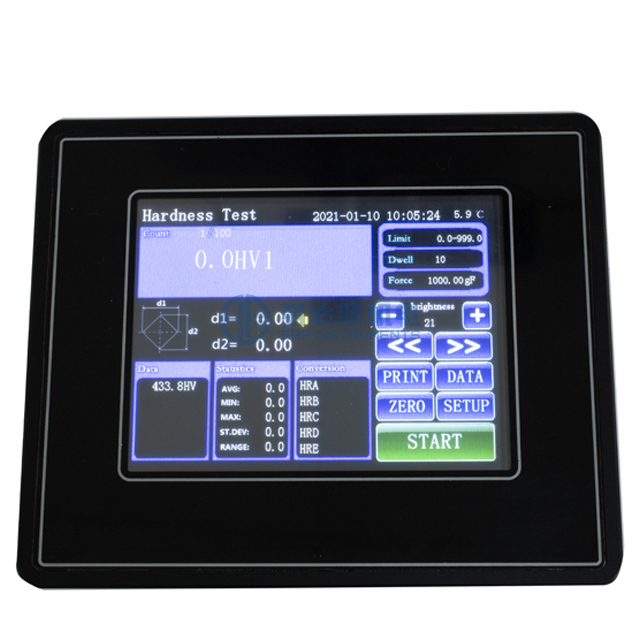

4. Large size touch screen can direct display hardness value, conversion hardness, testing method, testing force, dwell time, testing times and testing process;
5. Reserved CCD camera optical path, support machine work with computer and hardness measuring software system.
Main purpose and application:
1. Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic structure.
2. Carburization, nitriding and decarburization layer, surface hardening layer, galvanized coating, coating.
3. Glass, chip and ceramic material.
Operation Demo Video for reference:
