BS-3000AT
EBP INSTRUMENTS
Shanghai
120 sets per month
TT in advance
1 set
Features:
1. Large test force range: 62.5Kgf to 3000Kgf
2. With 12 kinds of measurement scale
3. Closed-loop control, with high accuracy load cell, no need installs weights, easy installation and calibration.
4. Measuring indentation automatically, no need to focus
5.Hardness value display on screen, and with hardness conversion function
6. Test force with automatic calibration function, load automatic corrected, much more accuracy
7. Hardness value automatic corrected according to different hardness block
8. Large test space: 135*200mm (Depth * Height)
9. Touch screen interface, menu structure interface, more information display
10. Save more samples and test information
11. Support to set a password for protection
12. With USB interface, test data can save to U-flash as EXCEL format, easy edit and process
13. Modular design, easy maintenance
14. Support upgrade to full automatic Brinell hardness tester
15. Dual optical path design, inbuilt camera design, camera and eyepiece can work at same time

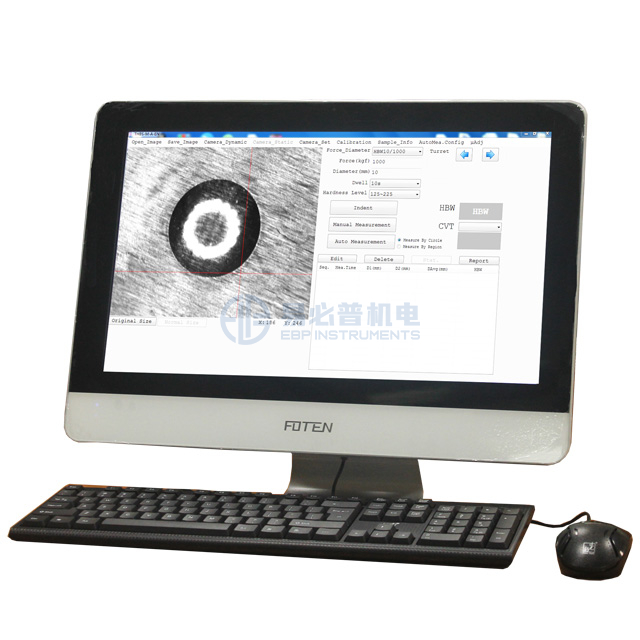

16. Software support automatic measurement and manual measurement, can generate test report in word format.
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and Bakelite etc.
Technical Specifications:
Model | BS-3000AT |
Turret | Automatic turret |
Brinell Scale | HBW2.5/62.5 HBW2.5/187.5 HBW5/62.5 HBW5/125 HBW5/250 HBW5/750 HBW10/100 HBW10/1500 HBW10/1000 HBW10/250 HBW10/500 HBW10/3000 |
62.5 (612.9), 100 (980.7), 125 (1226), 187.5 (1839), 250 (2452), 500 (4903), 750 (7355), 1000 (9807), 1500 (14710), 3000 (29420) | |
Load accuracy | 0.1%. Better than normal Brinell hardness tester 1% (above 1000Kgf) |
microscope magnification | 20X (option: 10X, 15X, 30X) |
Min measuring unit | 0.625µm ( option:0.3125µm) |
Dwell time | 5-60s |
Hardness range | 8-650HBW |
Data output | LCD display, USB interface saved in USB flash disk (save in Excel format) |
Executive Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 |
Test space | 200*135mm (H*D) |
With Hardness conversion function, test value can from Brinell value convert to below scales:
Standard Accessories:
Item | Quantity | Item | Quantity |
Measuring microscope 20X | 1 | Diameter 2.5mm Hard alloy indenter | 1 |
Accessories box | 1 | Diameter 5mm Hard alloy indenter | 1 |
Anti dust cover | 1 | Diameter 10mm Hard alloy indenter | 1 |
V-type working table | 1 | Medium working table | 1 |
Hardness block | 3 | Large working table | 1 |
USB flash disk | 1 | Quality certificate | 1 |
Manual book | 1 |
