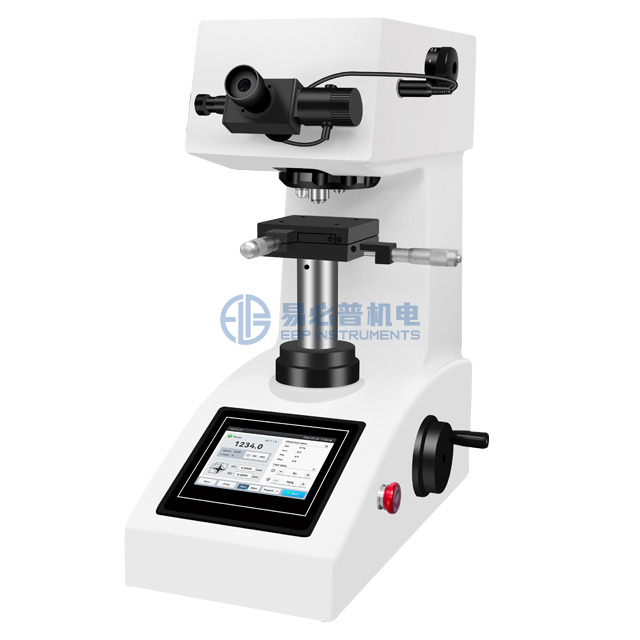

HVD-1000AT
EBP INSTRUMENTS
Shanghai, Shenzhen, Ningbo
150 sets
TT in advance
1 set
Main Features:
1. One-time casting aluminum machine body with car painting technology, structure more stable and appearance more decent.
2. Digital 10X eyepiece with inbuilt encoder, click the encoder machine will automatic get indentation diagonal length data D1 & D2, no need manual input data into machine, greatly improved testing accuracy and working efficiency.
3. With large touch screen digital display, directly display hardness value, dwell time, conversion hardness value, etc.
4. Menu structure interface, easy operation.
5. With HV / HK test function (if need HK test function, optional purchase Knoop diamond indenter and standard Knoop hardness blocks).
6. With built-in printer, test result can be printed out directly.
7. With RS232 communication port, machine can upgrade to semi-automatic or fully automatic type easily if needed in future.
8. Double optical path design. Reserved photo camera port, can add camera and work with hardness tester analysis and measuring software system (camera & software system for optional purchase).
Technical Specifications:
Model | HVD-1000AT | HVD-1000MT |
Turret | Automatic turret | Manual Turret |
Test force | 10gf (0.098N), 25gf (0.245N), 50gf (0.49N), 100gf (0.98N), 200gf (1.96N), 300gf (2.94N), 500gf(4.9N), 1kgf (9.8N) | |
Hardness scale | HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1 | |
Conversion Scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HBS, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T | |
Hardness range | 5-3000HV | |
Min. measuring unit | 0.01um | |
Data display | 5.6'' touch screen | |
Data output | built-in printer | |
Sample Height | maximum sample height: 110mm, Throat depth: 110mm | |
X-Y Testing table | Dimension: 100x100mm Max movement: 25x25mm | |
Force loading type | ||
Magnification | Eyepiece: 10X electronic eyepiece with encoder; Objective: 10X (observation); 40X (measuring) Total: 100X (observation); 400X (Measuring) | |
Duration time | 1~99s | |
Power supply | AC220V±5%, 50-60Hz | |
Machine size | 500*250*560mm; Net weight: 40kg | |
Package size | 595*415*810mm; Gross weight: 50kg | |
Standard | ISO 6507，ASTM E384，JIS Z2244，GB/T 4340.2 | |
Standard Packing List:
Item | Q’ty | Item | Q’ty |
Weight shaft | 1 | Weights | 6 |
X-Y Cross clamping testing table | 1 | Electronic eyepiece with encoder 10X | 1 |
Flat clamping testing table | 1 | Thin Specimen Testing Table | 1 |
Printer paper | 1 | Level adjustment screw | 4 |
Micro Vickers hardness block | 2 | Objective 10X, 40X | 1+1 |
Dust-proof cover | 1 | Screw driver | 2 |
Power cable | 1 | Fuse (2A) | 2 |
Manual | 1 | Product Certificate | 1 |
